Earth Fault Relay TM-8350s ENG
- True RMS measurement
- Low set
- High set
- Operation hour recording

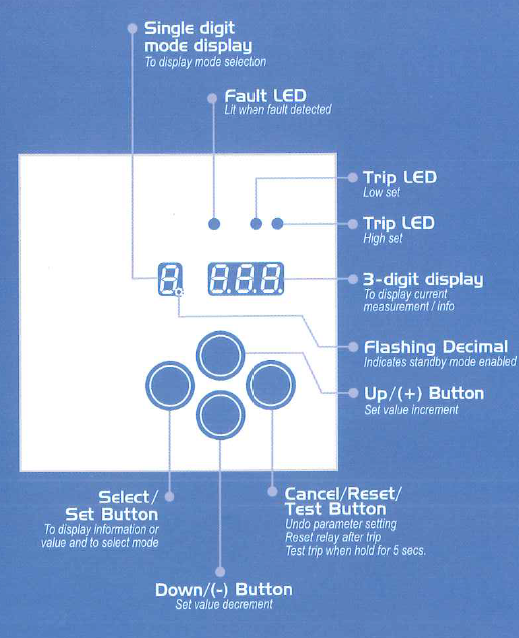

- Fault & Trip LED indication
- Trip value recording(3 memory)
- *Selectable 6 IDMT graphs
- Programmable relay output
- Programmable software lock

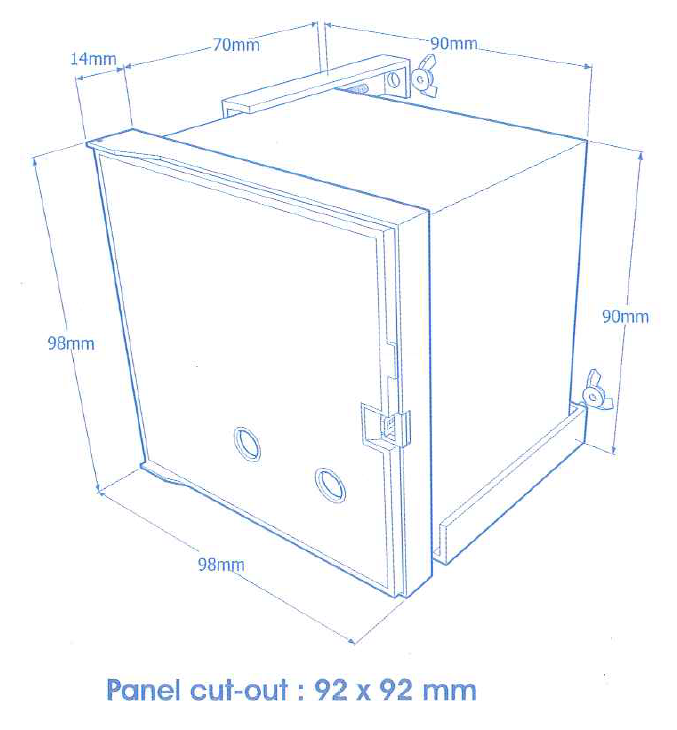

- Flush mount
      Technical data
	Measurement				True RMS Ampere
Rated current 5A
Current setting 2%~50%
Time setting 0.05~1.00sec(0.01 time multiplier)IDMT model
High-set 2~990% or OFF
High-set time 0.03-10.0(0.1sec)

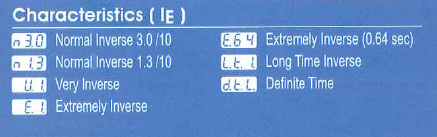

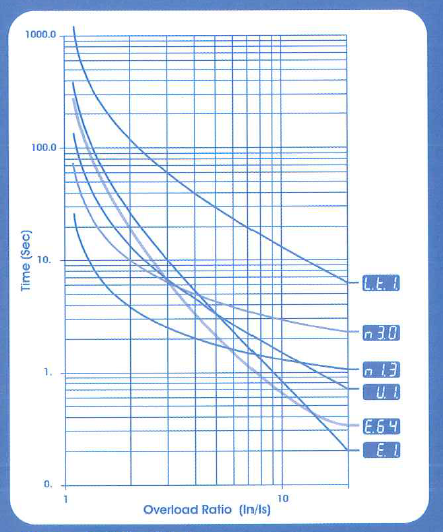

IDMT graph Normal Inverse:3.0/10 Normal Inverse:1.3/10 Very Inverse Extremely Inverse(standard) Extremely Inverse(0.64) Long Time Inverse Definite Time Relay operation level In/Is >= 1.10
Display range 0.0%~990% >990% display'out'
Minimum sensitivity ~0.5%

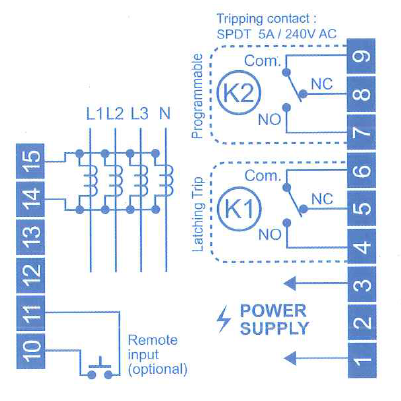

Tripping contact SPDT 5A/220V AC K1:Latching Trip K2:Programmable
Power supply 220V AC, 50Hz
C.T. input/burden .../5A /1VA
Weight ~600g
Operation temp. 0°C~+70°C
Standard IEC 1000-4-4,IEC 1000-4-5,IEC 255-5
