Power Factor Controller NV-6s,NV-8s,NV-14s

- Micro-processor based
- Cos φ and power factor info

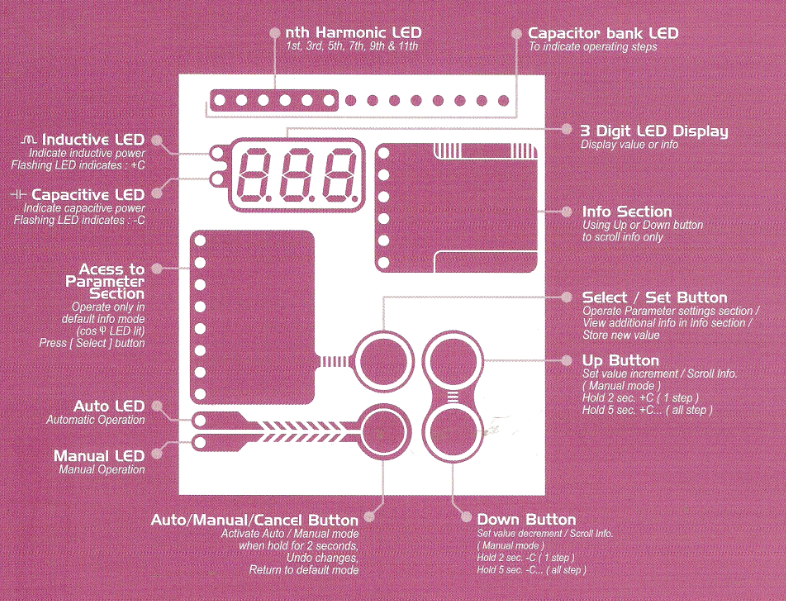

- LED indication for individual step
- Auto C/K detection
- Auto or manual operation
- Auto detection of C.T. polarity
- Secondary current info
- Voltage & Frequency info
- THD-I and THD-V info
- Harmonic spectrum info up to 11th order (for voltage and current)
- Programmable over voltage alarm
- Dedicated alarm output *
- Dedicated exhaust fan output *
- Programmable software lock

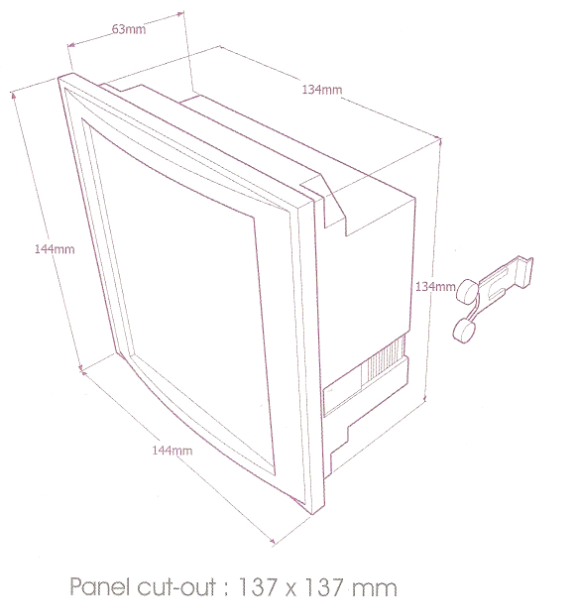

- Flush mount
* Available for models: NV-8s and NV-14s only.
      Technical data
        Power supply                 	240VAC
Rated current ../5A
Rated frequency 47 ~ 63Hz
Output relay 5A / 250VAC
No voltage release < 40 ms
Weight approx. 750g
Operating temp. 0°C ~ +55°C
Standard IEC:61000-4-2/4-4/4-5/255-5:1
      Setting Range
	C/K value			0.02 ~ 1.00
Cos φ 0.85(ind) ~ 0.95(cap)
Switching program P-0 ~ P-6 or auto custom
Switching interval 2 ~60 sec.
Re-connection time OFF or 1 ~ 250sec.
Voltage(V) OFF or 20 ~ 100%
THD(%)current(I) OFF or 20 ~ 100%
THD(%)voltage(V) OFF or 2.0 ~ 20.0%
