Earth Leakage Relay RG-80

- True RMS Measurement with SPARC1 and
DCOI2 Algorithm
- Fundamental Signal Detection3
- Real Time Display of I•n in mA/A
- Fault / lo-set & hi-set Trip LED Indication
- Fault Start Event Recording & LED Indication + Output4
- Pre-Alarm LED Indication + Output4
- Trip Event Memory (non-volatile 7 previous records)
- Fault Start Event Memory (non-volatile 4 previous records)
- Programmable Relay Output contact for K2
- Last Trip Elapsed Time (up to 99days)
- Software Lock to Prevent Unauthorized Setting
- Complies with IEC-60255-26 Standards
- External Plug-in Module for :- A-01s (RS-485 MODBUS RTU) isolated type

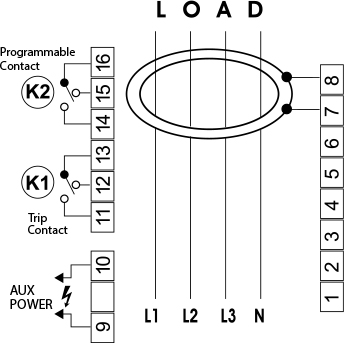

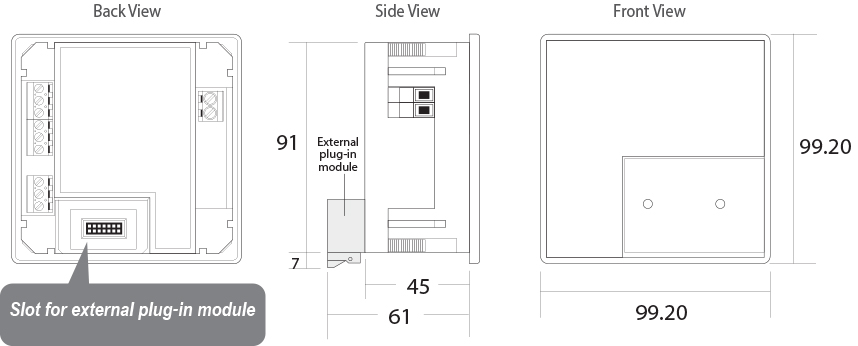

      Technical data
	Current Input (••n)		ZCT (multiple sizes from ID of 25~200mm)
Measurement Range 0.005 ~ 30.0 A
Output Relay Rating SPDT 5A, 250V AC/DC
Display 7-Segment LED (3 + 1digit)
Indication (LEDs) mA, pre-alarm, fault, fault start event, lo / hi trip
Operating Temp. 0°C ~ +55°C
Humidity 56 days at 93%RH, 40ºC non-condensing
IP Rating IP54 (front panel)
Weight 230 g
      Parameter Setting
	••n >: lo-set					30mA~30.0A
							0.03~1.00A (step of 0.01A)
							1.00~5.00A (step of 0.05A)
•>: lo-set trip delay time 0.03s~20.0s 0.03s~0.10s (step of 0.01s) 0.10s~1.00s (step of 0.02s) 1.0s~30.0s (step of 0.1s)
••n >>: hi-set OFF or 0.1A~30.0A (step of 0.1A)
•>>: hi-set trip delay time fixed @ 30ms
