DTS-100

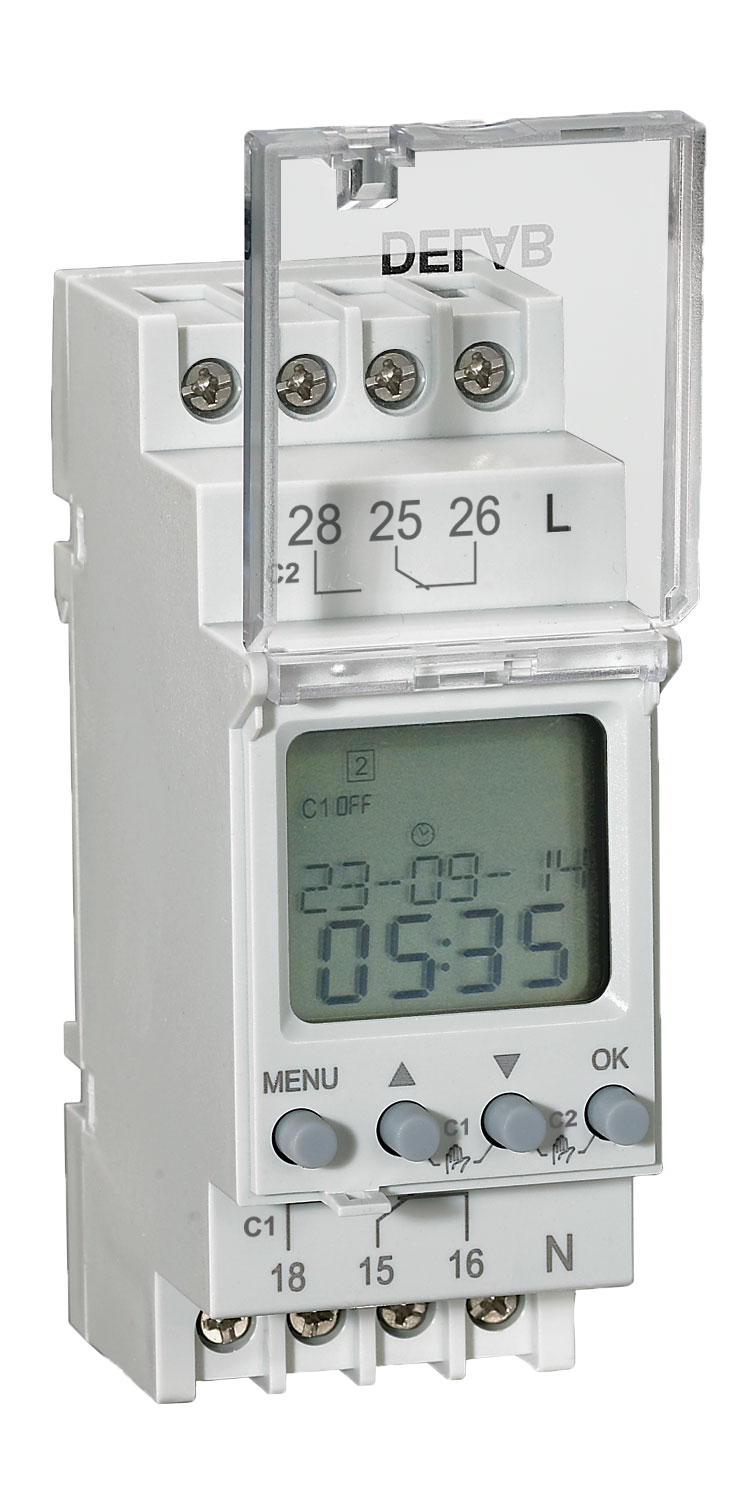

DTS-102

- Digital Time Switch with Daily/Weekly/*** Program

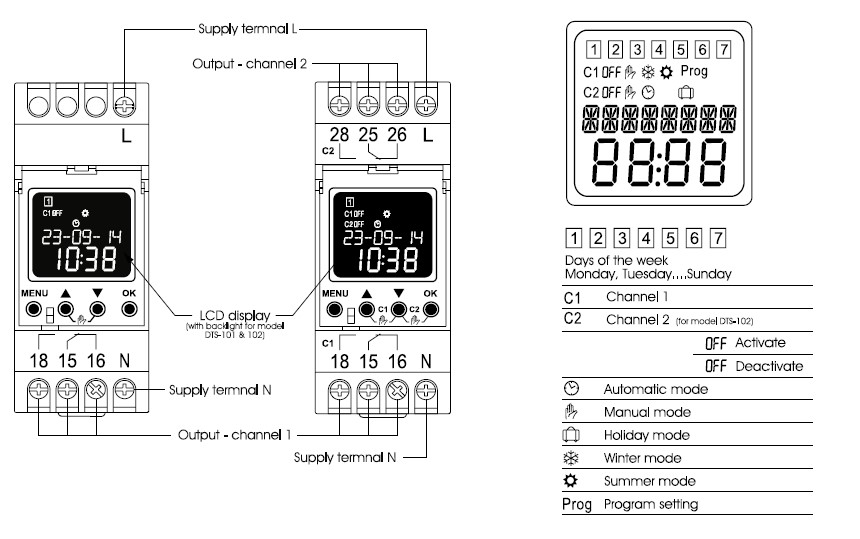

- *LCD Display with Backlight

- Holiday Mode

- Single / **Double Channel

- 5 or 10 Years Power Reserve (lithium battery)

- 40 Programs / **100 Programs

- Sealable Front Cover

- Single / Double Channel

- Manual Control by Keys Combination

- Automatic Transfer of Weekdays

- Double Module

- Din-rail Mount (TH-35 rail)

Technical Data
Model	DTS-100	DTS-101	DTS-102	DTS-200A

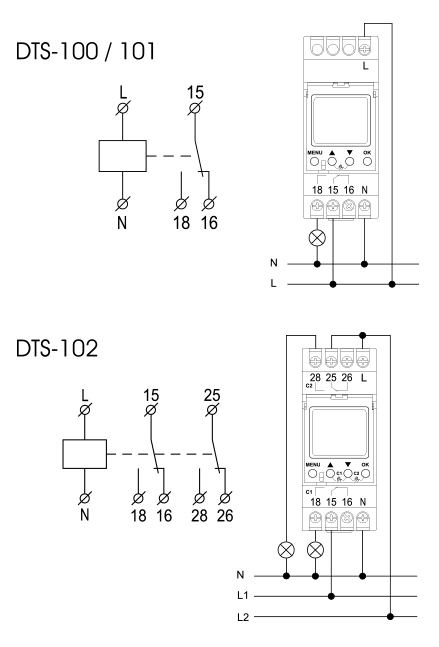

Supply terminals	L-N
Rated voltage	AC220~240 ±10%	AC/DC 24~264V ±10%
Rated frequency	50 / 60 Hz
Power consumption	1W		2W	1W
Number of programs	40		100	40
Program	weekly / daily			+ Astronomical
Mode of work	manual, automatic, holiday
Summer/winter time	off, automatic changes
Time tolerance	<1s /day at 25°C
Power reserve	5 yrs	10 yrs
Data readout	LCD display	LCD display with backlit
Number of contacts	1 C/O		2 C/O	1 C/O
Current of contacts	16A/250V AC1
Switching capacity	4000VA/AC1, 384W/DC
Mechanical life	10^6
Electrical life	10^5
Rated insulation voltage	250V
Protection degree	IP20
Pollution degree	3
Altitude	<2000M< /td>
Ambient temperature	-20°C ~ +55°C
Permissable relative humidity	<50%(-20°C, without condensation)
Storage temperature	-30°C ~ +70°C
Wire size	1mm^2 ~ 4mm^2
Tightening torque	0.5Nm

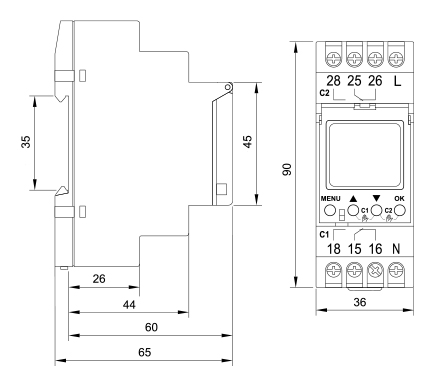

Mounting	TH-35 Rail(EN60715)
Weight	approx. 210g
Enclosure Protection	IP20
Standard	EN 60730-1/EN 60730-2-7

Digital Time Switch DTS-100,101,102,200A
