Earth Leakage Relay TM-18c,18r

- True RMS measurement
- Low set
- High set
- Operation hour recording

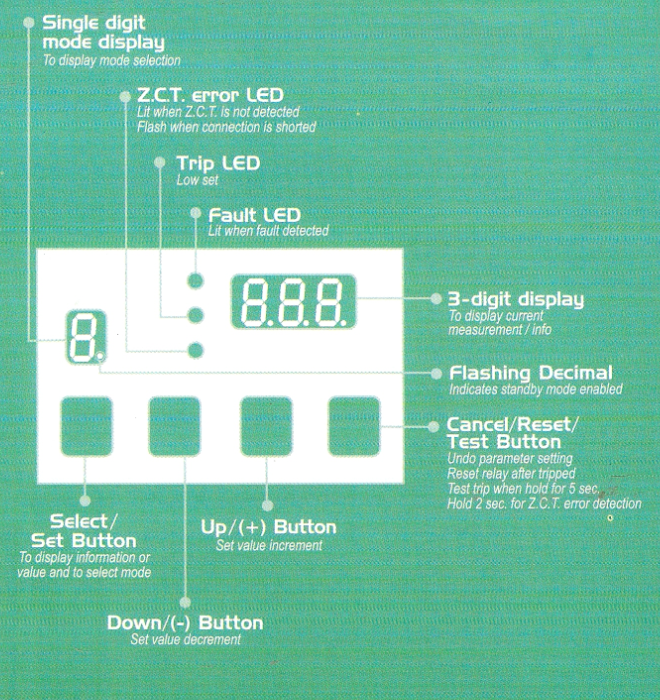

- Fault and Trip LED indication
- Trip value recording (3 memory)
- Total trip count information
- Self-reclosing / auto-reset *
- Programmable relay output
- Programmable software lock

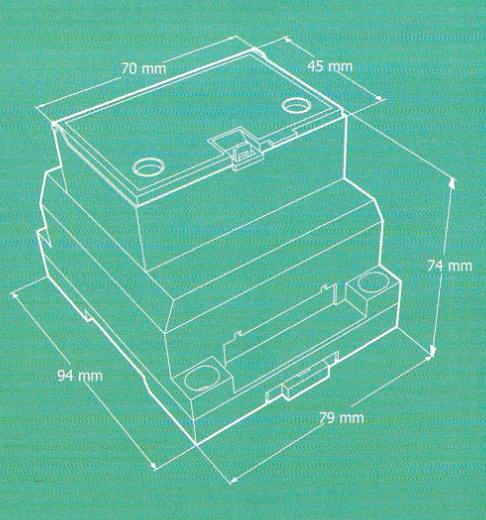

- Din-rail or screw mount
* Self re-closing or auto-reset available upon request
      Technical data
	Measurement                 	True RMS Ampere
Power supply 240VAC
Rated frequency 50 ~ 60Hz
Contact relay/Alarm 5A/250VAC

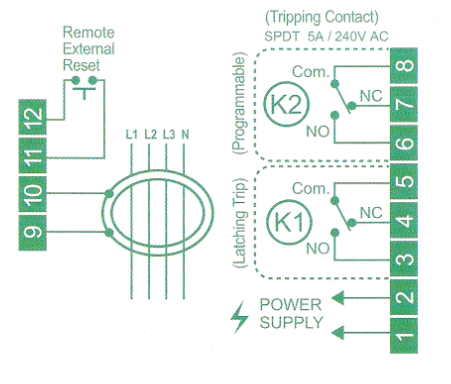

Tripping contact SPDT 5A/240VAC
Weight 320g
Operating temp. 0°C ~ +55°C
Standard IEC 61000-4-2/4-4/4-5/255-5:1

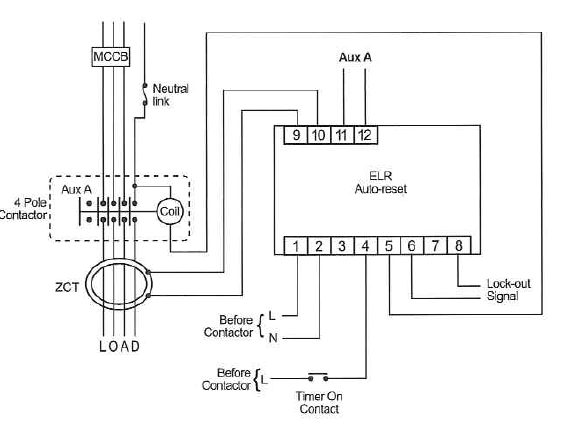

      Auto-reset Setting
	Trip lock-out setting			1~10
Auto reset timer 3.0~200sec
      Setting Range
	Current Setting 		0.03 ~ 30.0Ampere
Trip Time setting 0.05 ~10.0(0.1 sec step)
High-set OFF or 5~50Ampere(5 Amp step)
High-set trip time Fixed at 30ms
