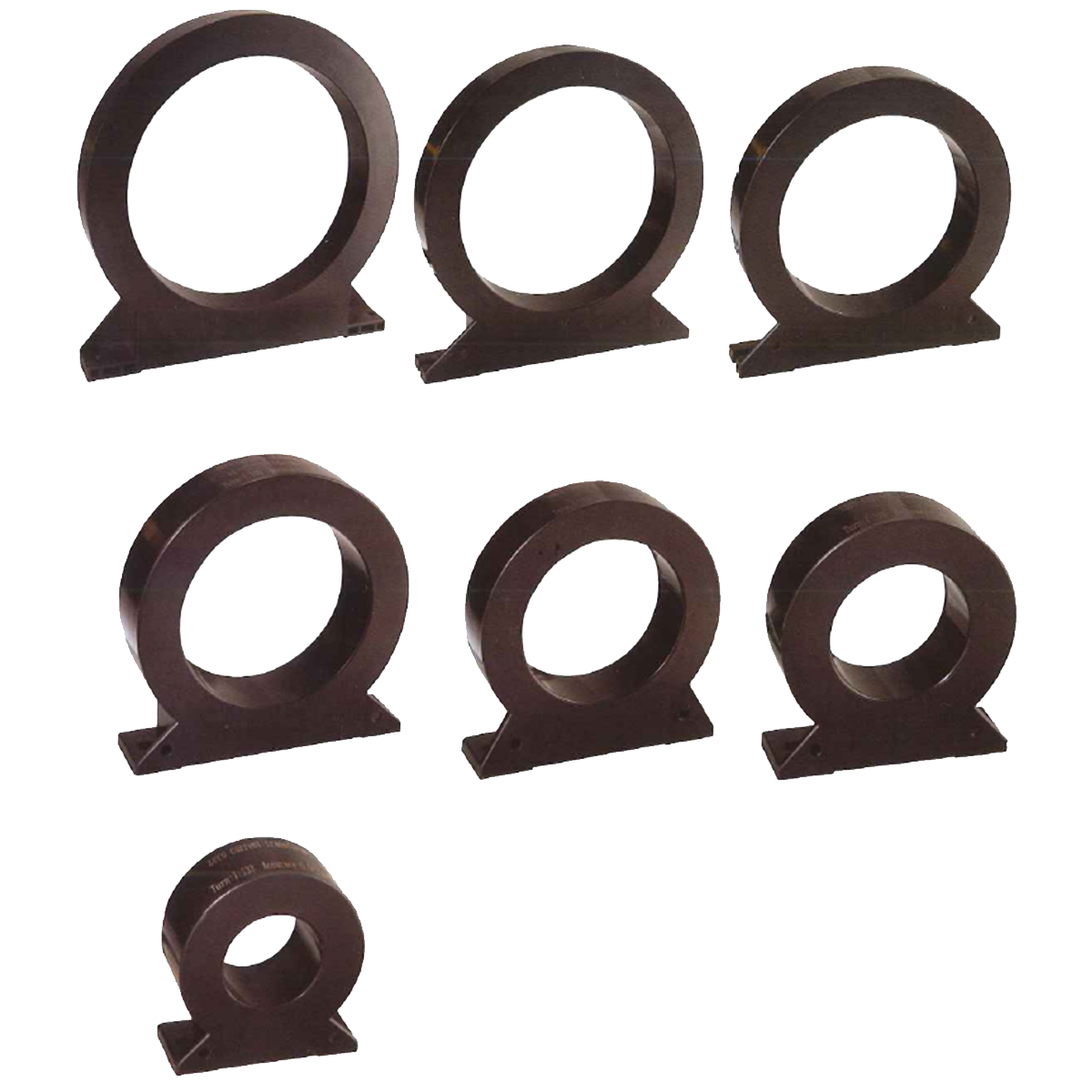

Zero Phase Current Transformer ZPC-25,45,65,80,100,150,200

For optimum performance and accuracy,
we recommend that you use only the original Z.C.T.
intended for use with the device. Using others Z.C.T.
could compromise on the performance or accuracy. The
warranty does not cover product failures which have
been caused by use of other Z.C.T.

      Technical data
	Frequency		50 / 60 Hz
Current Ratio 200 / 1.5
Insulation 600V / 50Hz 1 min.
Sec. Burden 10 VA
Cable 1.5 meters

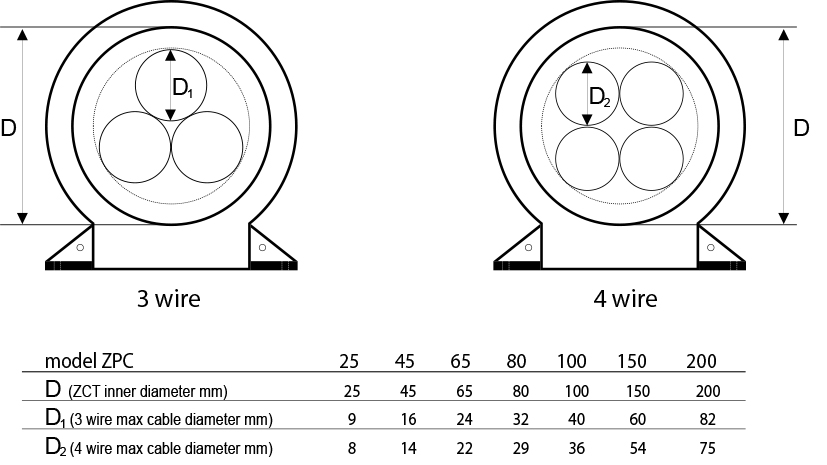

ZPC model 25 45 65 80 100 150 200
Applicable Current
(single PVC)
•60A •200A •300A •400A •500A •800A •800A

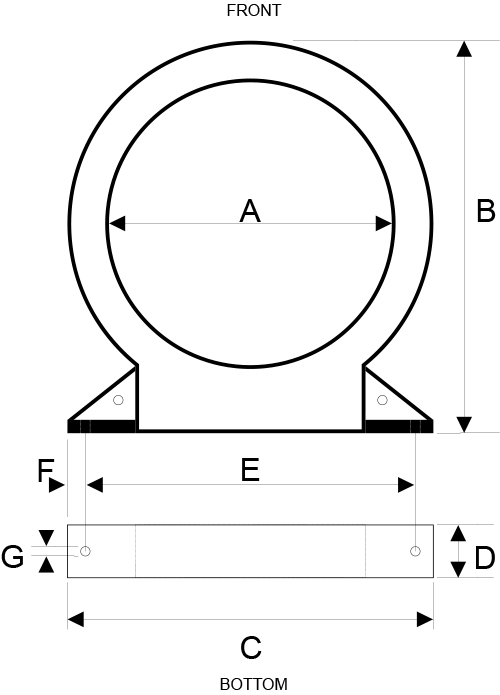

A(mm) 25 45 65 80 100 150 200
B(mm) 55 85 105 120 150 209 274
C(mm) 50 77 98 115 145 194 265
D(mm) 23 25 25 28 25 28 30
E(mm) 4 6 7.8 9.8 12.8 17.8 24.7
F(mm) 0.5 1 1 1 1 1 1
G(mm) 5 5 5 5 5 5 5
Weight(kg) ~0.13 ~0.19 ~0.27 ~0.37 ~0.56 ~0.96 ~1.62
