- True RMS Measurement with SPARC1 and
DCOI2 Algorithm
- Fundamental Signal Detection3
- Real Time Display of Earth Fault in %
- 6 Selectable IDMT Graphs + 1 DTL
- Fault / lo-set & hi-set Trip LED Indication
- Fault Start Event Recording &
LED Indication + Output4
- Pre-Alarm LED Indication + Output4
- Trip Event Memory
(non-volatile 7 previous records)
- Fault Start Event Memory
(non-volatile 4 previous records)
- Programmable Relay Output Contacts
- Last Trip Elapsed Time (up to 99days)
- Software Lock to Prevent Unauthorized Setting
- Complies with IEC-60255-26 Standards
- ANSI Code: 50N, 51N

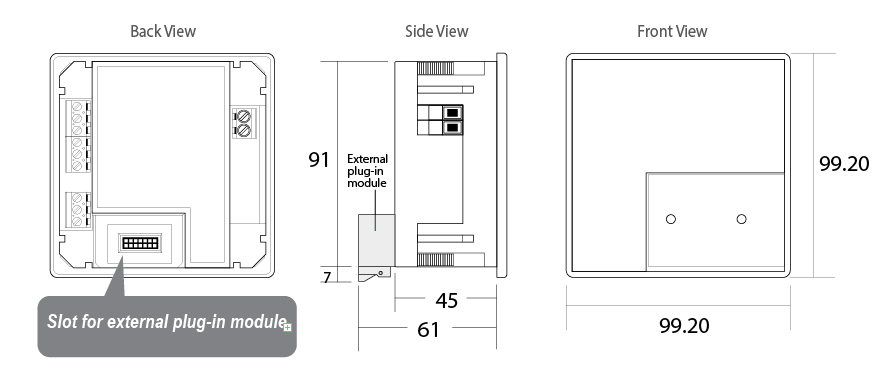

- External Plug-in Module for :-
A-01s (RS-485 MODBUS RTU) isolated type
|
Technical data

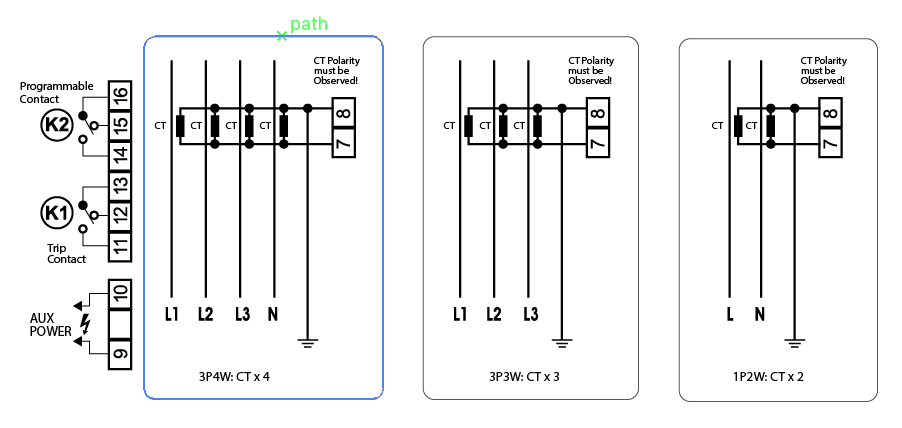

Current Input (•n) ../5A or ../1A
Frequency Software selectable 50 or 60 Hz
Burden <0.3 VA @ •n
Output Relay Rating SPDT 5A, 250V AC/DC

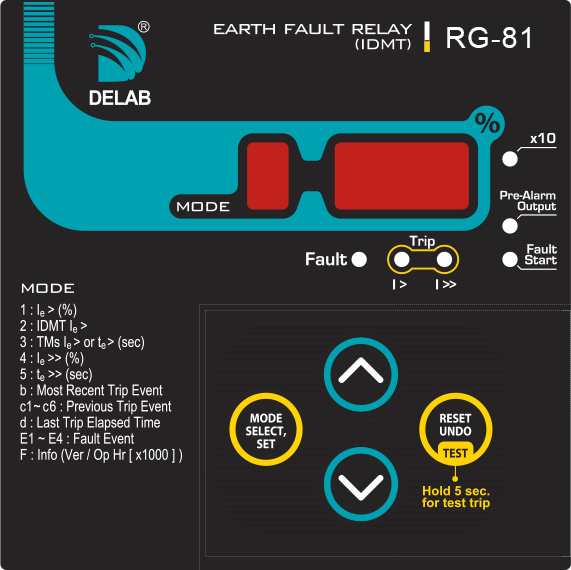

Display 7-Segment LED (3 + 1digit)
Indication (LEDs) mA, pre-alarm, fault, fault start event,
lo / hi trip
Operating Temp. 0°C ~ +55°C
Humidity 56 days at 93%RH, 40°C non-condensing
IP Rating IP54 (front panel)
Weight 230 g
Parameter Setting
•>: lo-set 2% ~ 100% (step of 1%)
TM >: lo-set time Multiplier 0.05 ~ 1.00
(step of 0.01, 5 IDMT + 1 DTL)
•>: lo-set trip delay time 0.03s~20.0s
0.03s~0.10s (step of 0.01s)
0.10s~1.00s (step of 0.02s)
1.0s~20.0s (step of 0.1s)
•>>: hi-set OFF or 20%~1000% (step of 10%)
•>>: hi-set trip delay time 0.03s~0.5s
