Earth Leakage Relay TM-8000s

- True RMS measurement
- Low set
- High set
- Operation hour recording

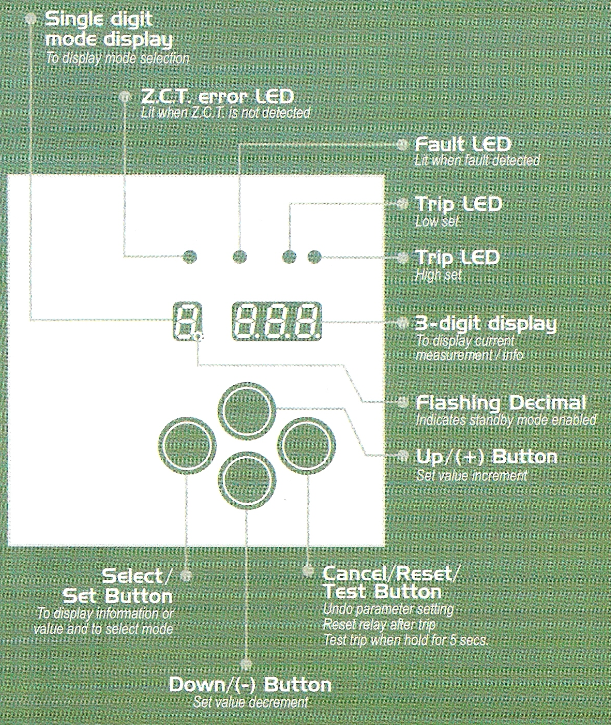

- Fault and Trip LED indication
- Trip value recording (3 memory)
- Auto Z.C.T. connection check (open/short)
- Total trip count information
- Self-reclosing / auto-reset *
- Programmable relay output
- Programmable software lock

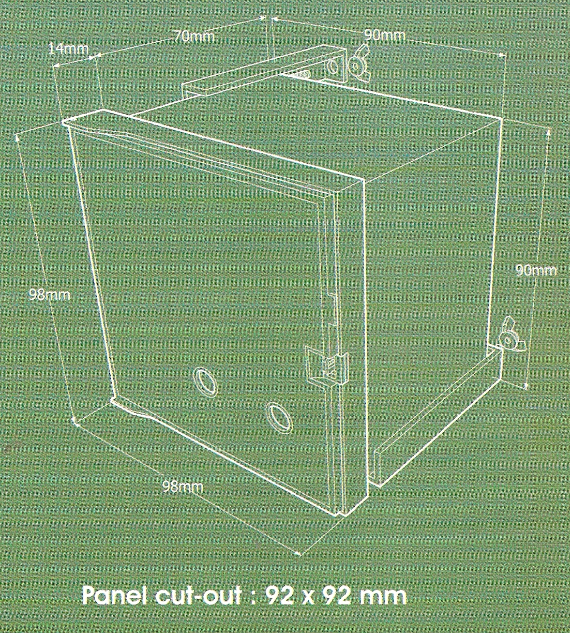

- Flush mount
* Self re-closing or auto-reset available upon request
      Technical data
	Measurement			True RMS Ampere
Power Supply 240 VAC
Rated frequency 50 / 60 Hz (Selectable)
Output relay / Alarm 5A / 250VAC
Tripping Contact SPDT 5A / 240 VAC
Weight 410g
Operating temp. 0°C ~ +55°C
Standard IEC : 61000-4-2/4-4/4-5/255-5:1
      Setting Range
	Current Setting			0.03 ~ 30.0 Ampere
Trip Time setting 0.05 ~ 10.0 (0.1 sec step)
High-set OFF or 5 ~ 50 Ampere (5 Amp step)
High-set trip time Fixed at 30ms
