The
Britway underfloor power track system consists of a series of fully enclosed
single phase busbar module units and is designed to be assembled direct
onto the floor slab of a cavity floor installation. The units are available
in a selection of standard lengths, all compatible with standard floor
module and cavity floor trunking sizes. Each length has a facility at
regular intervals to accept a pre-wired tap off unit for connection to
either a remote mounted floor access box or direct to a work station.
To complete the product range, the power track units are complemented
by a minimum of basic components, an incoming cable feeder unit, a track
interconnector for joining lengths of track together and a stop end to
complete the track run.

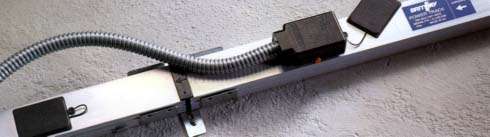

The
power track module is a 63A 3 wire single phase busbar unit with the facility
to accept a tap off unit at intervals of 300mm, these allow the removal
or addition of tap off units without the need to isolate the complete
system. The socket comprises a fully shuttered entry, protected when out
of use by a dust cover with a retaining cord. The tap off units are retained
by an automatic built-in dual operated locking device which prevents accidental
removal. A purpose designed and built 63A 4 wire clean earth single phase
busbar unit is also available. This is colour coded and has a non-interchangeable
pin configuration to ensure accidental mixing of services does not occur.
The
standard tap off unit comprises a 32A unfused plug fitted with 3m of 4mm2
PVC cable in a 16mm flexible metal conduit. Where lengths longer than
3m are required, a 13A fused tap off unit is fitted and wired with the
appropriate length of 2.5mm2 PVC cable.
The 16mm flexible metal conduit is terminated with a 20mm adaptor to suit
the more readily available and accepted
knockout
size. Special attention has been paid to the fitting of the flexible conduit
to the plug and to the cable gland, additional unique locking devices
are fitted to ensure the conduit cannot work loose to expose the cables
or to interfere with the earth continuity.
