LIGHTING & LOW POWER TRACK - TYPE BL

The comprehensive Britway Track System Type BL offers a choice of 25 or 40 Amp ratings in single phase, twin single phase circuit or three phase configurations. With an overall installed cost (material and labour), equivalent to that for a cabled installation, the considerable benefits of busbar systems are available to the end user without incurring a financial penalty. The system is extremely easy to install. The track is both strong and lightweight for ease of handling on site. It is available in 3 metre lengths with optional 2 metre lengths for make up purposes. They incorporate slide together joints that are designed for rapid assembly and accurate alignment ensuring sound electrical connection and mechanical strength. The joints themselves incorporate a positive latch location mechanism that operates when the connection is fully engaged. The tightening of a single screw is then all that is required to complete the jointing process. The system offers considerable flexibility. Not only does it afford the end user considerable scope for re-configuration but also allows such changes to be made quickly and economically.

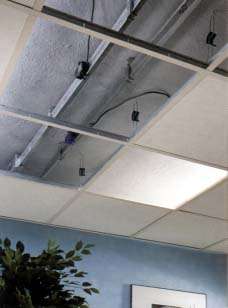

The plug in tap-off facility permits the ready addition of extra loads, for example, luminaires, fast re-positioning of existing loads or their disconnection for maintenance purposes, thus greatly simplifying these tasks. The down time and disruption normally associated with such operations are reduced to a minimum.

Features

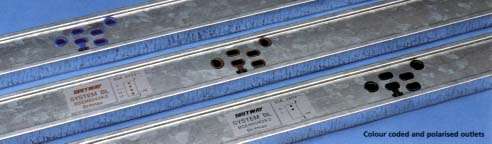

Outlets are provided at intervals of 1 metre as standard with an option of 0.5 metre spacing on request. They incorporate a shutter mechanism and are both colour coded and polarised for ease of identification and safety. The moulding colour of the outlet corresponds to the particular busbar configuration, black for the single phase, blue for the two circuit and brown for the three phase track. The polarisation, in conjunction with equivalent features on the tap-off plugs, will only allow safe combinations of connection.

The tap-off plugs are also colour coded. Polarisation features also correspond with those of the socket outlets. Tap-off units are available either unfused with prewired cable tails or fuseable with terminal facility to accept cables up to 2.5mm2.

Single phase tap-offs for use with the three phase track incorporate a phase selection facility allowing on site phase designation or change. Three phase tap-offs are also available for use with the three phase track.

All tap-offs feature a positive twin latching arrangement which operates automatically on plug insertion and prevents accidental removal.

System fully complies with BS EN 60439 Parts 1 and 2.

Product List

TRACK MODULES

CURRENT RATING

　

　

25 amp

40 amp

LENGTH

SINGLE PHASE - Black

　

　

BL1P2531

BL1P4031

3m

TWO CIRCUIT - Blue

　

BL2P2531

BL2P4031

3m

BL2P4021

BL2P4021

2m

THREE PHASE - Brown

　

BL3P2531

BL3P4031

3m

BL3P4021

BL3P4021

2m

  • All track lengths feature integral jointing sleeves.

  • Standard track outlet spacing 1m with 0.5m spacing option available on request.

  • 2m track lengths for make up purposes are always supplied in 40A rating.

  • The track body is a roll form closed galvanised steel section which also serves as a substantial protective earth conductor.

　

　

　

　

　

　

　

SYSTEM ANCILLARIES

Applicable to all configurations.

BL40IN

Infeed unit

  • Each track run commences with an infeed unit, Generously sized terminals are provided which are each capable of accepting a stranded cable of cross sectional area up to 16mm2. Assembly to the track again user the slide together principle as used for joining the track itself.

BLF40FO

Feed on unit

  • Feed-on units are also available which allow the transition from track back to cable. This facility can be particularly advantageous where a change in track run direction is required or where it is necessary to by-pass an obstruction and then continue with another track run. The termination facilities provided are as described for the infeed units.

BLBE

Blank end

  • Every track run is terminated by fitting a blank end unit.

BLBF

Fixing bracket

  • A fixing bracket, which can be used both for securing the track and for the suspension of loads, such as luminaires from the track, completes the Britway lighting and low power track system.

　

　

　

　

　

　

SINGLE PHASE TAP-OFF UNITS

SINGLE PHASE

FLEX LENGTH

BL118

0.8m

BL112

2m

BLF110

N/A

TWO CIRCUITS

FLEX LENGTH

CIRCUIT 1

CIRCUIT 2

　

BL118

0.8m

BL112

2m

BLF110

N/A

THREE PHASE

FLEX LENGTH

BL138

0.8m

BL132

2m

BLF130

N/A

　

　

　

  • Unfused 10 Amp rating, prewired in 1mm2 3 core cable.

  • Fuseable (maximum fuse 13A BS 1362) with terminals to accept up to 2.5mm2 cable

  • Single phase tap-offs for use on the three phase track have phase selection facility. Supplied as standard with phase L1 selected and fitted with a red disc label. Yellow and blue ciscs are supplied loose.

  • The same tap-off plugs are used for both the single phase track and circuit 1 of the two circuit tracks.

THREE PHASE TAP-OFF UNITS

For use with 3 phase track.

FLEX LENGTH

BL338

0.8m

BL333

3.0m

  • Unfused 16 Amp rating, prewired in 2.5mm2 5 core cable.
